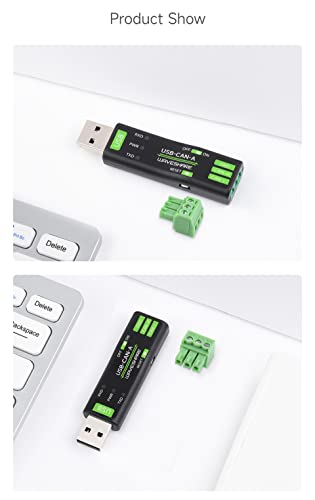

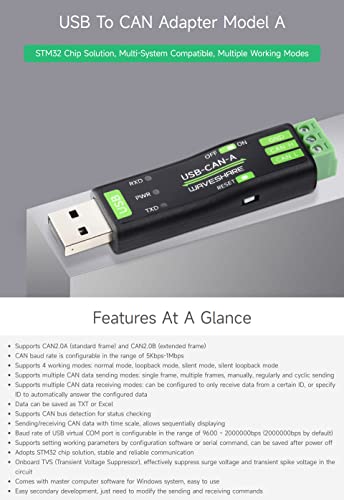

Waveshare USB to CAN Adapter Analyzer, Adopts STM32 Chip Scheme, 4 Working Modes, Stable Communication, for Windows XP/7/8/10/11, for Raspberry Pi OS/Jetson Nano Ubuntu and Other Linux System

The data of CAN bus can be collected to the PC via USB to realize the receiving and transmitting control, data analysis, collection and monitoring of the CAN Bus Network

Support CAN2.0A (standard frame) and CAN2.0B (extended frame). Support CAN communication baud rate range: 5kbps~1Mbps, can customize CAN baud rate. Support multiple CAN data receiving methods: it can be configured to receive only the data with the specified ID, or specify the ID to automatically respond to the configured data

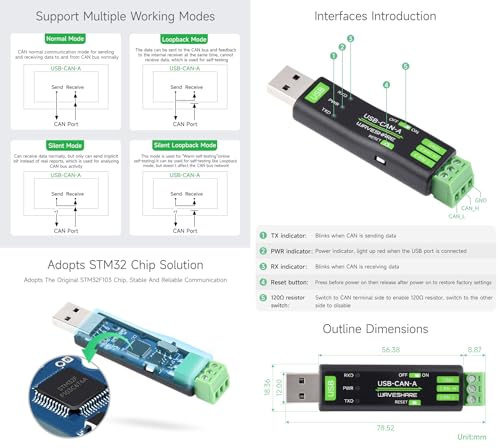

Supports 4 Working Modes: normal mode, loopback mode, silent mode, and silent loopback mode. Support multiple CAN data Transmission Modes: single frame transmission, multi frame transmission, manual transmission, timed transmission and cyclic transmission

Adopts the Original STM32F103 Chip, more stable and reliable communication. Support to set the communication baud rate of USB virtual COM port (9600~2000000bps), the default is 2000000bps

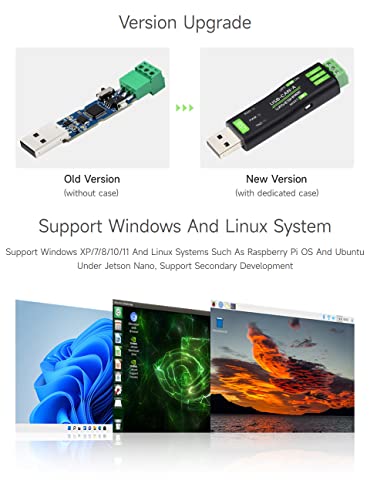

Supports Windows XP/7/8/10/11, Compatible with Raspberry Pi OS/Jetson Nano Ubuntu and other Linux Systems, Supports Secondary Development(Just deal with the receiving and sending commands)
