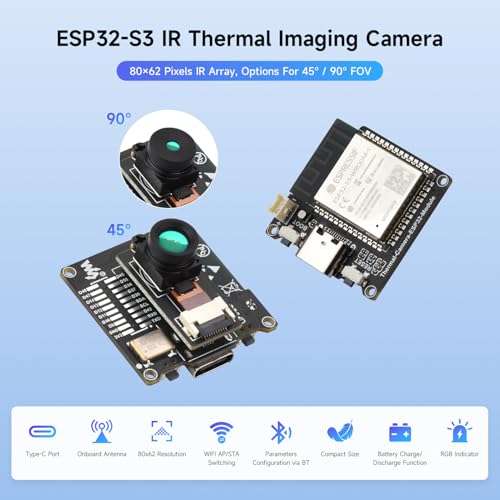

Waveshare ESP32-S3 Infrared Wireless IR Thermal Imaging Camera Module, Type-C Port, 80×62 Array Pixels Basic Version 45 ° Field of View Angle

Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities; Supports 2.4GHz WiFi (802.11 b/g/n) and Blue-T 5 (LE), with onboard antenna.

Onboard RGB LED indicator for real-time monitoring the operating status of the module; Onboard 3.7V MX1.25 Lithium batt recharge / discharge header for flexible power supply solution, extending device operation time; Onboard 2 × 10 solder pads, including 14 × GPIO, 1 × I2C, and 1 × UART, for external device expansion.

Built in 512KB of Static RAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory; Compact size design, more space-saving, making it ideal for embedded applications

Supports TCP communication and WiFi AP /STA preview modes, compatible with Windows systems; Provides an Android APP for easy configuration of module parameters; The Blue-T APP is only used for configuring parameters such as the module’s IP and device name. It does not support viewing thermal images.

Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
