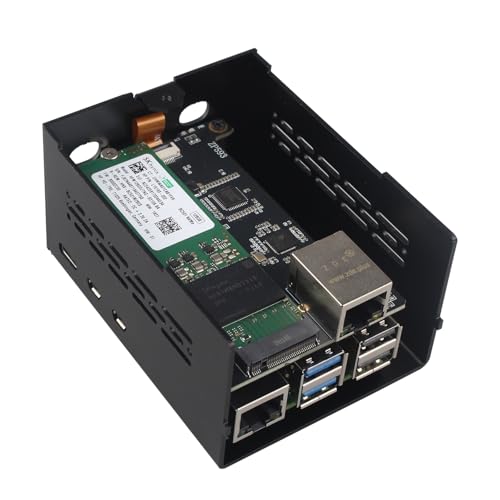

ZDE ZP593 PCIe to 2.5G Ethernet Port PCIe to M.2 Key M NVMe SSD HAT Expansion Board 2.5GB 2.5GBE with ZC506 Aluminum Case for Raspberry Pi 5 2GB 4GB 8GB 16GB

Compatibility: This kit includes a ZP593 PCIe Peripheral Board and an ZC506 aluminum case. It is compatible with the latest Raspberry Pi 5 2GB/4GB/8GB/16GB board.

2.5G Ethernet Port Supported: This expansion board adds one 2.5GBE network port and one M.2 Key-M interface for Raspberry Pi 5, which can meet your various needs for those who need to use Pi 5 as a router, gateway, firewall, and other network devices that need more than one network port.

How to use: Through the PCIe interface with PCIe Switch chip to expand into two PCIe interfaces and then through the RTL8125 chip to achieve the expansion of 2.5Gbps Ethernet and M.2 Key-M NVME.

M.2 NVMe SSD Supported: Support M.2 NVMe SSD for expansion and storage, compatible with M.2 KEY-M NVMe SSD in 2230/2242/2260/2280 length. Support boot from SSD, and it needs Raspberry Pi official firmware, which is at least 2024.5.13.

High-quality Enclosure: The case is specifically designed for HAT expansion boards with 2.5G Ethernet Port (The two modules for 2.5G Ethernet ports are easily detachable). It is made of lightweight and durable aluminum material, which can offer excellent protection and heat dissipation for the Raspberry Pi 5 board and expansion board.
