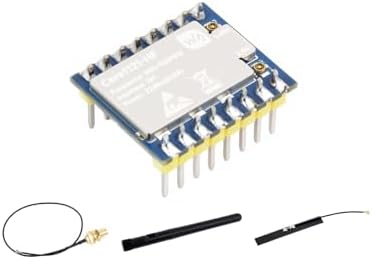

Core1121 HF Dual-Band LoRa Modul Basierend auf LR1121 Low-Power LoRa Transceiver

Bezeichnung bei Amazon: Core1121 HF Dual-Band LoRa Modul Basierend auf LR1121 Low-Power LoRa Transceiver, Unterstützt Sub-GHz (150MHz ~ 960MHz), S-Band (1.9GHz ~ 2.1GHz), und 2.4GHz ISM Frequenzbänder (mit Pinheader)

• Core1121 HF Dual-Band LoRa Module is a long-range, ultra-low-power transceiver, based on the third-generation low-power LoRa transceiver LR1121, supports Sub-GHz (150MHz ~ 960MHz), S-band (1.9GHz ~ 2.1GHz), and 2.4GHz ISM frequency bands
• Connects to the cloud via LoRa or LoRaWAN protocol through a gateway, enabling low-power wide-area networking (LPWAN). Supports LoRa, (G)FSK, and LR-FHSS modulation schemes, compatible with SX126X/SX127X series for easy product upgrades
• LR1121 supports both LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies, with modulation coverage across Sub-GHz, S-band, and 2.4GHz ISM frequency bands. Suitable for IoT applications such as industrial telemetry, smart home, remote data acquisition
• SPI communication interface, supports mainstream MCU platforms for seamless integration and migration.Integrates AES-128 encryption engine to enhance data security. Onboard TCXO crystal oscillator ensures frequency stability under extreme temperature conditions
• Comes with online development resources and manual (examples for ESP32 / Raspberry Pi / STM32 / Raspberry Pi Pico). Please feel free to contact us if you have any question
