Waveshare 2-Channel Isolated CAN Bus Expansion HAT for Raspberry Pi Motherboards
Preis bei Amazon
Aktuellen Preis und Lieferzeit zeigt Amazon.
- Marke
- Waveshare
Datenblatt
Technische Daten
| Marke | Waveshare |
|---|---|
| ASIN | B0D3GD458Z |
Herstellerangaben laut Amazon, Stand 24. Oktober 2026.
Beschreibung des HerstellersBezeichnung und Aufzählung wie bei Amazon

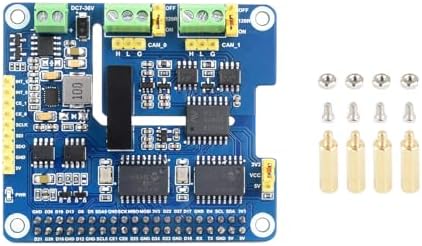

Bezeichnung bei Amazon: Waveshare 2-Channel Isolated CAN Bus Expansion HAT for Raspberry Pi Motherboards, Dual Chips Solution, Stackable Design for Expanding Multiple CAN Channels
- Standard Pi 40PIN GPIO extension header, compatible with Raspberry Pi/Jetson Nano series boards. Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
- Onboard unibody power supply isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal. Onboard digital isolator, signal isolation makes the communication more safe and stable, and better anti-interference
- Onboard external power supply terminal, supports 7~36V wide voltage power input, supports powering the Pi and the HAT at the same time. Onboard SM24CANB TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper. Onboard 120Ω terminal resistor, configured by jumper
- Breakout SPI and I2C control pins, for connecting with other host control boards. Can provide with online development resources and manual (examples in Python/C)
